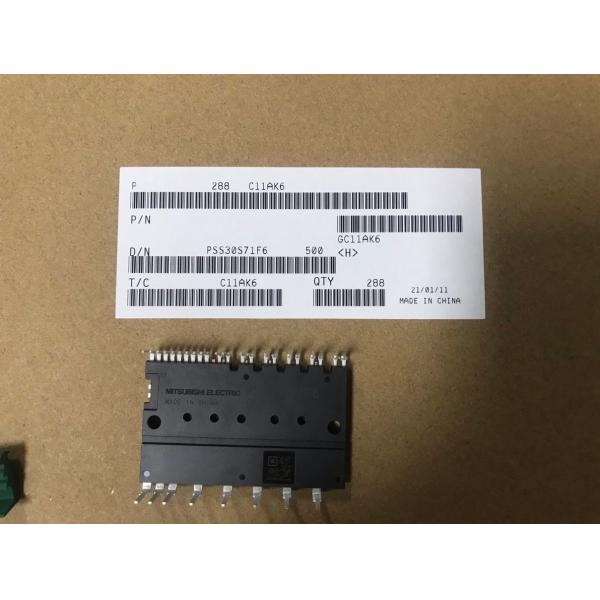

N Side 90.9W Electric IGBT Modules PSS30S71F6 Mitsubishi

PSS30S71F6 100% Original IGBT Module

1.MAIN FUNCTION AND RATINGS

3 phase DC/AC inverter
600V / 30A (CSTBT)
N-side IGBT open emitter
Built-in bootstrap diodes with current limiting resistor

2. APPLICATION

AC 100~240Vrms(DC voltage:400V or below) classlow power motor control

3. INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS

For P-side: Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection
● For N-side:Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC),
● Fault signaling : Corresponding to SC fault (N-side IGBT), UV fault (N-side supply)
● Temperature output : Outputting LVIC temperature by analog signal
● Input interface : 3, 5V line, Schmitt trigger receiver circuit (High Active)

4. INTERNAL CIRCUIT

5.Control terminals

6.Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your MOQ?

A:We provide you small MOQ for each item, it depends your specific order!

Q3. Do you test or check all your goods before delivery?

A: Yes, we have 100% test and check all goods before delivery.

Q4: How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.

Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
