TPS7A8801QRTJRQ1 TI LDO Voltage Regulators Autom Dual 1A Low-Noise LDO VReg

TPS7A8801QRTJRQ1 TI LDO Voltage Regulators Autom Dual 1A Low-Noise LDO VReg

1.Features

AEC-Q100QualifiedWiththe FollowingResults:
– TemperatureGrade1: –40°C≤TA≤+125°C
– HBMESDClassificationLevel2
– CDMESDClassificationLevelC5
• Two IndependentLDOChannels
• Low OutputNoise:4 μVRMS(10 Hz to 100 kHz)
• Low Dropout:230 mV (Maximum)at 1 A
• WideInputVoltageRange:1.4 V to 6.5 V
• WideOutputVoltageRange:0.8 V to 5.15V
• HighPower-SupplyRippleRejection
– 70 dB at 100 Hz
– 40 dB at 100 kHz
– 40 dB at 1 MHz
• 1% AccuracyOverLine,Load,and Temperature
• ExcellentLoadTransientResponse
• AdjustableStart-UpInrushControl
• SelectableSoft-StartChargingCurrent
• IndependentOpen-DrainPower-Good(PG)Outputs
• StableWitha 10-μF or LargerCeramicOutputCapacitor
• Low ThermalResistance:RθJA= 39.8°C/W
• 4-mm× 4-mmWettableFlankWQFNPackage

2.Applications
• RF and RadarPowerin AutomotiveApplications
• AutomotiveADASECUs
• TelematicControlUnits
• Infotainmentand Clusters
• High-SpeedI/F (PLLand VCO)

3.TypicalApplicationDiagram

4.Description
The TPS7A88-Q1is a dual,low-noise(4 μVRMS), low-dropout(LDO)voltageregulatorcapableof sourcing1 A per channelwith 250 mV of maximumdropout
TheTPS7A88-Q1providesthe flexibilityof twoindependentLDOsandapproximately50%smallersolutionsizethantwo single-channelLDOs.Eachoutputis adjustablewith externalresistorsfrom0.8 Vto 5.15V. The TPS7A88-Q1wideinput-voltagerangesupportsoperationas low as 1.4 V and up to 6.5 V.
With1% outputvoltageaccuracy(overline, load,andtemperature)and soft-startcapabilitiesto reducein-rushcurrent,the TPS7A88-Q1is idealfor poweringsensitiveanaloglow-voltagedevices(suchasvoltage-controlledoscillators[VCOs],analog-to-digitalconverters[ADCs],digital-to-analogconverters[DACs],high-endprocessors,and field-programmablegatearrays[FPGAs])
TheTPS7A88-Q1is designedto powernoise-sensitivecomponentssuchas thosefoundin RF,radarcommunications,andtelematicapplications.The low 4-μVRMSoutputnoiseand widebandPSRR(40 dB at 1 MHz)minimizesphasenoiseand clockjitter.Thesefeaturesmaximizeperformanceofclockingdevices,ADCs,and DACs.The TPS7A88-Q1featureswettableflanksfor simpleopticalinspection

5.Pin Configurationand Functions

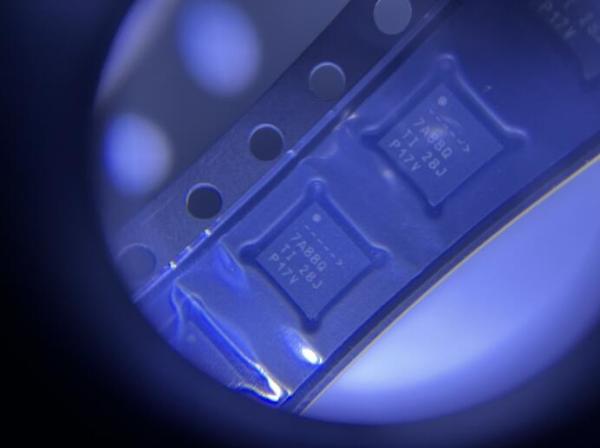

TPS7A8801QRTJRQ1 TI LDO Voltage Regulators Autom Dual 1A Low-Noise LDO VReg Images
